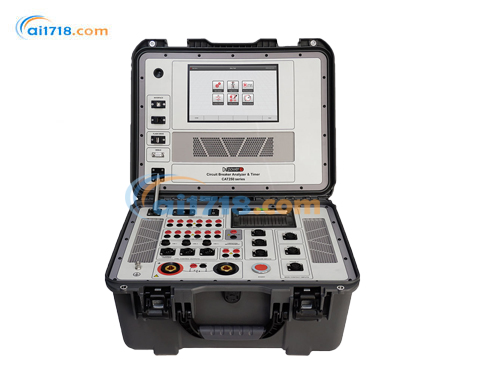

瑞典DV POWER　CAT250 斷路器分析儀和定時器

型號：CAT250 斷路器分析儀和定時器

品牌：瑞典DV POWER

會員價格：面議

聯系方式： 010-68940148

在線解答：

立即咨詢

瑞典DV POWER

IBEKO POWER AB 公司位于瑞典，專業致力于新一代電力測試設備的研發和制造，所有產品均采用更先進的技術和工藝制造。“DV- power”是其商標，該系列產品是由前“Programma”公司的一組工程師與ABB 公司共同研發的。我司成立于2000年，由一群電力電子技術領域...[查看更多]

瀏覽過此產品的用戶最終購買了

CAT500 斷路器定時器和分析儀

瑞典DVPOWER CAT250 斷路器分析儀和定時器由愛儀器儀表網代理，CAT250 系列繼承了市場*的CAT Advanced系列的所有功能和經驗。CAT250引入了獨特的觸摸屏界面。現在熱賣中，如需購買，可通過ai1718.com的客服熱線聯系我們！

CAT250 斷路器分析儀和定時器介紹：

CAT250系列繼承了市場*的CAT Advanced系列的所有功能和經驗。
CAT250引入了獨特的觸摸屏界面，旨在顯著節省各類中高壓斷路器的測試準備和結果分析所需的時間。
測試結果也可以以表格和圖形形式打印在 112 毫米（4.4 英寸）熱敏打印機（可選附件）上。

CAT250 斷路器分析儀和定時器特點：

CAT250 系列斷路器分析儀和計時器可與 DV 電源線圈分析儀 SAT II 系列結合使用，創建一個測試系統（通過 CAT250 觸摸屏界面完成控制和測試），能夠執行以下應用列表：
同時定時測量多達 12 個主觸點（每相 4 個斷路），包括預插入電阻器（如果斷路器中存在）和 6 個輔助觸點
預插入電阻器的電阻測量（如果斷路器中存在）
斷路器極間同步評估
測量線圈電流、電壓和電阻（同時測量 3 個線圈 - 在打開或關閉序列期間）
通過以圖形方式顯示電壓值來評估變電站電池的狀態
測量斷路器運動部件的位移、觸擦、超程、回彈、阻尼時間和平均速度
斷路器振動指紋記錄
“*次旅行”測試
靜態電阻測量
動態電阻測量
測量彈簧儲能電機時間、電流和電壓（直流和交流電源電壓，用作 CAT 和 SAT 測試系統時）
內置微歐表（可選）提供大電流，用于動態和靜態電阻測量，以及死槽斷路器的BSG定時測量。
附加的六個電壓模擬通道有四個可選電壓范圍（±1V、±5V、±60V 和 ±300V AC/DC）。它們用于監控：
測量線圈電阻（同時測量 3 個線圈 - 在打開或關閉序列期間）
斷路器變電站電池電壓，
“*跳閘”測試期間的直流和交流電流，
用于 GIS 上 BSG 測試的 CT 二次電流
可能相關的其他類型的模擬信號。
三個振動通道輸入記錄斷路器振動指紋，使用基于振動的分析對斷路器主觸點進行非侵入式評估。
三個傳感器通道提供斷路器運動部件的位移、觸點擦拭、超程、回彈、阻尼時間和平均速度的測量。模擬或數字傳感器都可以連接到這些通用通道。
測試結果以表格和圖形形式打印在 112 毫米（4.4 英寸）熱敏打印機（可選附件）上。

CAT250訂購信息
Instrument	Article No
Circuit Breaker Analyzer &Timer CAT250 with 3 timing channels	CAT250-03-01
Circuit Breaker Analyzer &Timer CAT250 with 6 timing channels	CAT250-06-01
Circuit Breaker Analyzer &Timer CAT250 with 12 timing channels	CAT250-12-01
Included accessories
Windows based DV-CB PC software
USB cable
Ethernet cable
Mains power cable
Ground (PE)cable
Debug adapter
Transport case
Recommended accessories		Article No
Main contact cables
Main contact cables 5 m(16.4 ft)with SCT clamps (for three timing channels)		CM-05-34MXST
Main contact cables 5 m(16.4 ft)with SCT clamps (for six timing channels)		CM-05-65MXST
Main contact cables 5 m(16.4 ft)with SCT clamps (for twelve timing channels		CM-05-12MXST
Main contact cables extension
Main contact cables extension 10 m(32.8 ft)(for three or six timing channels)		E3-10-65MXFX
Main contact cables extension 10 m(32.8 ft)(for twelve timing channels)		E6-10-12MXFX
Control cabinet cables
Coil control cable set 5 m(16.4 ft)with banana plugs (Single-pole control -6 coil channels)		CO-05-6BC5B1
Coil supply cable set 4x5m 2,5 mm2(16.4 ft,13 AWG)with banana plugs		CS-05-02BPBP
Auxiliary contacts cable set 12x5 m(16.4 ft)with banana plugs		AX-05-02BPBP
Analog channels cable set 12x5 m(16.4 ft)with banana plugs		AN-05-02BPBP
Current cables
Current cables 2x10 m 50 mm2(32.8 ft,0 AWG)with battery clamps for built in 500 A micro ohmmeter)		C2-10-50VMB3
Current cables 2x 10 m 25 mm2(32.8 ft,3 AWG)with battery clamps (f or built in 200 A micro ohmmeter)		C2-10-25LMB1
Sense cables
Sense cables 2x10 m(32.8 ft)with alligator clamps for built in micro ohmmeter)		S2-10-02BPA1
Cases
Cable plastic case -large size (x 2)		CABLE-CAS-03

Optional accessories	Article No
Micro ohmmeter 200 A (built-in)	BIMCAT5-2-00
Micro ohmmeter 500 A (built-in)	BIMCAT5-5-00
Both Sides Grounded (BSG)of AlS(Air Insulated Substation)for CAT250 -3 timing channels (one break per phase)	BSG-CAT25-03
Both Sides Grounded (BSG)of AlS (Air Insulated Substation)for CAT250 -6 timing channels (two breaks per phase)	BSG-CAT25-06
Both Sides Grounded (BSG)for Dead Tank Circuit Breaker for CAT250 series	BSG-CATDTB-O
Built-in high precision measurement module	RMO-HPMM-DGO
Current clamp 30/300 A power supplied from the instrument with adapter 5 m(16.4 ft)	CACL-0300-07
Current clamp 30/300 A with intermal battery supply and extension 5 m(16.4 ft)	CACL-0300-08
Thermal printer 112 mm (4.4 inch)(built-in)	PRINT-112-00
Thermal paper roll	PRINT-112-RO
Cable plastic case with wheels -large size	CABLE-CAS-W3
Coil control cable set 10 m with banana plugs (Single-pole control -6 coil channels)	CO-10-6BC5B1
Coil control cable set 15 m with banana plugs (Single-pole control -6 coil channels)	CO-15-6BC5B1
Coil control cable 5 m with banana plugs (Three-pole control -2 coil channels)	CO-05-00C5B1
Coil control cable 10 m with banana plugs (Three-pole control -2 coil channels)	CO-10-00C5B1
Coil control cable 15 m with banana plugs (Three-pole control -2 coil channels)	CO-15-00C5B1
Auxiliary contacts cable set 12 x5 m with banana plugs	AX-05-02BPBP
Auxiliary contacts cable set 12 x 10 m with banana plugs	AX-10-02BPBP
Auxiliary contacts cable set 12 x 15 m with banana plugs	AX-15-02BPBP
Analog channels cable set 12x5 m with banana plugs	AN-05-02BPBP
Analog channels cable set 12 x 10 m with banana plugs	AN-10-02BPBP
Analog channels cable set 12 x 15 m with banana plugs	AN-15-02BPBP
Main contact cables
Main contact cables 3 m(9.8 ft)with SCT clamps (for three timing channels)	CM-03-34MXST
Main contact cables 3 m(9.8 ft)with SCT clamps (for six timing channels)	CM-03-65MXST
Main contact cables 3 m(9.8 ft)with SCT clamps (for twelve timing channels	CM-03-12MXST
Main contact cables 3 m(9.8 ft)with alligator clamps (for three timing channels)	CM-03-34MXA2
Main contact cables 5 m(16.4 ft)with alligator clamps (for three timing channels)	CM-05-34MXA2
Main contact cables 3 m(9.8 ft)with alligator clamps (for six timing channels	CM-03-65MXA2
Main contact cables 5 m(16.4 ft)with alligator clamps (for six timing channels)	CM-05-65MXA2
Main contact cables 3 m(9.8 ft)with alligator clamps (for twelve timing channels)	CM-03-12MXA2
Main contact cables 5 m(16.4 ft)with alligator clamps (for twelve timing channels)	CM-05-12MXA2
Main contact cables extension
Main contact cables Extension 5 m(16.4 ft)(for three or six timing channels)	E3-05-65MXFX
Main contact cables Extension 5 m(16.4 ft)(for twelve timing channels)	E6-05-12MXFX
Main contact cables Extension 15 m(49.2 ft)(for three or six timing channels)	E3-15-65MXFX
Main contact cables Extension 15 m(49.2 ft)(for twelve timing channels	E6-15-12MXFX
Current cables
Current cables 2x5 m 50 mm2(32.8 ft,0 AWG)with battery clamps (f or built in 500 A micro ohmmeter)	C2-05-50VMB3
Current cables 2x15 m 70 mm2(49.2 ft,00 AWG)with battery clamps (f or built in 500 A micro ohmmeter)	C2-15-70VMB3
Current cables 2x5 m 25 mm2(32.8 ft,3 AWG)with battery clamps (f or built in 200 A micro ohmmeter)	C2-05-25LMB1
Current cables 2x15 m 35 mm2(49.2 ft,2 AWG)with battery clamps (f or built in 200 A micro ohmmeter)	C2-15-35LMB1

Sense cables
Sense cables 2x5 m(32.8 ft)with alligator clamps (f or built in micro ohmmeter)	S2-05-02BPA1
Sense cables 2x15 m(49.2 ft)with alligator clamps ( for built in micro ohmmeter)	S2-15-02BPA1
Transducers
Digital rotary transducer with 5 m(16.4 ft)connection cable	DRT-250-C605
Digital rotary transducer with 10 m (32.8 ft)connection cable	DRT-250-C610
Digital rotary transducer with 5 m(16.4 ft)connection cable with accessories	DRT-SET-0005
Digital rotary transducer with 10 m(32.8 ft)connection cable with accessories	DRT-SET-0010
Linear analog transducer 150 mm (5.9 in)with 5 m(16.4 ff)connection cable	LAT-150-C305
Linear analog transducer 225 mm (8.85 in)with 5 m(16.4 ft)connection cable	LAT-225-C305
Linear analog transducer 300 mm (11.8 in)with 5 m(16.4 ft)connection cable	LAT-300-C305
Linear analog transducer 500 mm (19.68 in)with 5 m(16.4 ft)connection cable	IAT-500-C305
Current clamp 30/300 A power supplied from the instrument with adapter 5 m	CACL-0300-07
AC Current clamp 1 A/1 V and cable 5 m with banana plugs	CACL-ACBP-05
Online first trip test kit -single-pole control	ONFTT-KIT-00
Online first trip test kit -three-pole control	ONFTT-KIT-01
Transducer mounting kits
Universal transducer mounting kit	UTM-KIT-0000
Universal transducer mounting kit -extended version	UTM-KIT-0001
Mounting bracket for analog linear transducer	LAT-MNTB-000
Doble transducer adapter	DTA-BOX-C002
Linear to rotary convertor	LTR-CON-0000

CAT250斷路器分析儀和計時器規格
電源供應
根據 IEC/EN60320-1; UL498, CSA 22.2連接
電源	90 V - 264 V AC
頻率	50/60 Hz
I輸入功率	3900 VA
保險絲15 A / 250 V，快速反應，但不是用戶可更換
適用標準
安裝/過電壓	第二類
污染	2度
安全	LVD 2014 / 35 /歐盟（CE符合）標準EN 61010-1
EMC	指令2014 / 30 /歐盟（CE符合標準EN 61326-1:2006）
CAN/CSA-C22.2 No. 61010-1
環境條件
操作溫度	-10 oC - + 55 oC / 14 oF - +131 oF
存儲和運輸	-40 oC - + 70oC / -40 oF - +158 oF
濕度	度5% - 95%相對濕度
尺寸/重量
尺寸(寬 x 高 x 深):	505 mm x 409 mm x 257 mm 18.89 in x 7.75 in x 15.55 in
重量	13.2 kg / 29.1 lbs
CAT250斷路器分析儀和計時器說明文檔
