IBEKO POWER AB 公司位于瑞典，專業致力于新一代電力測試設備的研發和制造，所有產品均采用更先進的技術和工藝制造。“DV- power”是其商標，該系列產品是由前“Programma”公司的一組工程師與ABB 公司共同研發的。我司成立于2000年，由一群電力電子技術領域...[查看更多]
?CAT126
CAT34訂購信息
Instrument
Article No

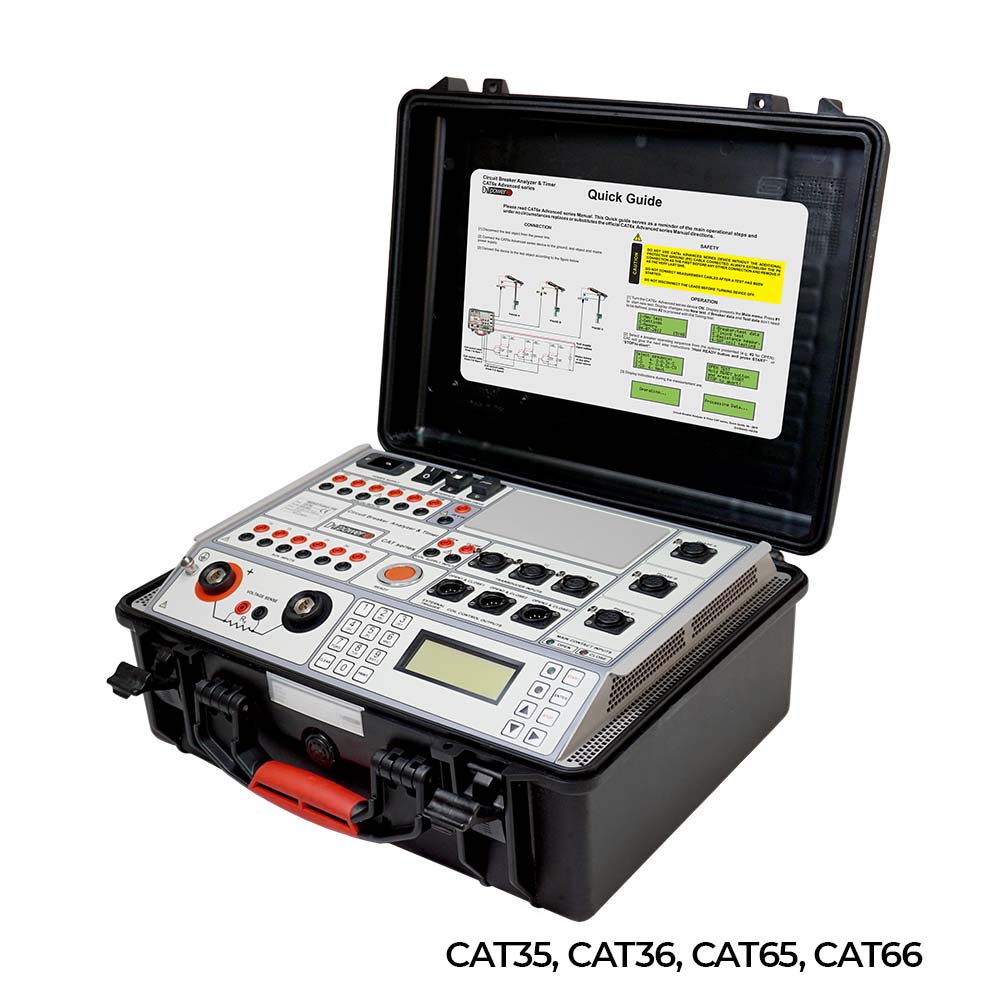

Circuit Breaker Analyzer & Timer CAT35
CAT3500-N-01
Circuit Breaker Analyzer & Timer CAT36
CAT3600-N-01
Circuit Breaker Analyzer & Timer CAT64A
CAT64A0-N-01
Circuit Breaker Analyzer & Timer CAT65
CAT6500-N-01
Circuit Breaker Analyzer & Timer CAT66
CAT6600-N-01
Circuit Breaker Analyzer & Timer CAT124A
CAT124A-N-01
Circuit Breaker Analyzer & Timer CAT125
CAT1250-N-01
Circuit Breaker Analyzer & Timer CAT126
CAT1260-N-01
Included accessories
Windows based DV-Win PC software including USB cable
Mains power cable
Ground (PE) cable
Plastic transport case
Standard accessories
Article No
Main contact cables
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT35, CAT36)
CM-05-34MXST
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT64A, CAT65, CAT66)
CM-05-65MXST
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT124A, CAT125, CAT126)
CM-05- 12MXST
Main contact cables extension
Main contact cables extension 10 m (32.8 ft) (for CAT35, CAT36, CAT64A, CAT65, CAT66)
E3- 10-65MXFX
Main contact cables extension 10 m (32.8 ft) (for CAT124A, CAT125, CAT126)
E6- 10- 12MXFX
Control cabinet cables
Coil control cable set 5 m (16.4 ft) with banana plugs
(Single-pole control -6 coil channels)
CO-05-6BC5B1
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs with retractable isolation (red) (x 6)
JCR- 15-2REBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs with retractable isolation (black) (x 6)
JCB- 15-2REBP
Test probe with grip jaws (black) (x 3)
TESTPR-GJ-B0
Test probe with grip jaws (red) (x 3)
TESTPR-GJ-R0
Coil supply cable set 4 x 5 m 2,5 mm2 (16.4 ft, 13 AWG) with banana plugs
CS-05-02BPBP
Auxiliary contacts cable set 12 x 5 m (16.4 ft) with banana plugs
AX-05-02BPBP
Analog channels cable set 12 x 5 m (16.4 ft) with banana plugs
AN-05-02BPBP
Current cables
Current cables 2 x 10 m 50 mm2 (32.8 ft, 0 AWG) with battery clamps
(for CAT36, CAT66 and CAT126)
C2- 10-50VMB3
Current cables 2 x 10 m 25 mm2 (32.8 ft, 3 AWG) with battery clamps
(for CAT35, CAT65 and CAT125)
C2- 10-25VMB1
Sense cables
Sense cables 2 x 10 m (32.8 ft) with alligator clamps
(for CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)
S2- 10-02BPA1
Cable cases
Cable plastic case - large size (x 2)
CABLE-CAS-03
Optional accessories and features
Article No
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Live Tank Circuit Breaker
for CAT3x Advanced series (3 channels - one break per phase)
(available with CAT35 and CAT36)
BSG-CATII-00
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Live Tank Circuit Breaker
for CAT6x and CAT12x Advanced series (6 channels - two breaks per phase)
(available with CAT65, CAT66, CAT125 and CAT126)
BSG-CATII-01
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Dead Tank Circuit
Breaker for CAT Advanced series
(available with CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)
BSG-CATDTB-0
BSG on GIS feature for CAT Advanced series (available with CAT36, CAT66 and CAT126)
BSG-CATGIS-0
Current cables with branch connectors 2 x (3 x 5 m, 16 mm2) with SCT clamps
C6BC-05-16GMST
Extension cables 2 x 5 m 50 mm2
E2-05-50VMVF
AC Current clamp 1 A / 1 V and cable 5 m with banana plugs
CACL-ACBP-05
Built-in high precision measurement module
(available with CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)
RMO-HPMM-DG0
Current clamp 30/300 A power supplied from the instrument with adapter 5 m (16.4 ft)
CACL-0300-07
Current clamp 30/300 A with internal battery supply and extension 5 m (16.4 ft)
CACL-0300-08
Thermal printer 112 mm (4.4 inch) (built-in)
PRINT- 112-01
Thermal paper roll
PRINT- 112-RO
Cable plastic case with wheels - large size
CABLE-CAS-W3
Control cabinet cables
Coil control cable set 10 m with banana plugs (Single-pole control -6 coil channels)
CO- 10-6BC5B1
Coil control cable set 15 m with banana plugs (Single-pole control -6 coil channels)
CO- 15-6BC5B1
Coil control cable 5 m with banana plugs (Three-pole control - 2 coil channels)
CO-05-00C5B1
Coil control cable 10 m with banana plugs (Three-pole control - 2 coil channels)
CO- 10-00C5B1
Coil control cable 15 m with banana plugs (Three-pole control - 2 coil channels)
CO- 15-00C5B1
Coil supply cable set 4 x 2 m 2,5 mm2 (6.5 ft, 13 AWG) with banana plugs
CS-02-02BPBP
Coil supply cable set 4 x 5 m 2,5 mm2 (16.4 ft, 13 AWG) with banana plugs
CS-05-02BPBP
Coil supply cable set 4 x 10 m 2,5 mm2 (32.8 ft, 13 AWG) with banana plugs
CS- 10-02BPBP
Coil supply cable set 2 x 2 m 2,5 mm2 with banana plugs
C2-02-02BPBP
Coil supply cable set 2 x 5 m 2,5 mm2 with banana plugs
C2-05-02BPBP
Coil supply cable set 2 x 10 m 2,5 mm2 with banana plugs
C2- 10-02BPBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs (black)
JCB- 15-2BPBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs (red)
JCR- 15-2BPBP
Auxiliary contacts cable set 12 x 5 m with banana plugs
AX-05-02BPBP
Auxiliary contacts cable set 12 x 10 m with banana plugs
AX- 10-02BPBP
Auxiliary contacts cable set 12 x 15 m with banana plugs
AX- 15-02BPBP
Analog channels cable set 12 x 5 m with banana plugs
AN-05-02BPBP
Analog channels cable set 12 x 10 m with banana plugs
AN- 10-02BPBP
Analog channels cable set 12 x 15 m with banana plugs
AN- 15-02BPBP
Main contact cables
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT35, CAT36)
CM-03-34MXST
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT64A, CAT65, CAT66)
CM-03-65MXST
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT124A, CAT125, CAT126)
CM-03- 12MXST
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT35, CAT36)
CM-03-34MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT35, CAT36)
CM-05-34MXA2
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT64A, CAT65, CAT66)
CM-03-65MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT64A, CAT65, CAT66)
CM-05-65MXA2
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT124A, CAT125, CAT126)
CM-03- 12MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT124A, CAT125, CAT126)
CM-05- 12MXA2
Main contact cables extension
Main contact cables Extension 5 m (16.4 ft) (for CAT35, CAT36, CAT64A, CAT65, CAT66)
E3-05-65MXFX
Main contact cables Extension 5 m (16.4 ft) (for CAT124A, CAT125, CAT126)
E6-05- 12MXFX
Main contact cables Extension 15 m (49.2 ft) (for CAT35, CAT64A, CAT65, CAT66)
E3- 15-65MXFX
Main contact cables Extension 15 m (49.2 ft) (for CAT124A, CAT125, CAT126)
E6- 15- 12MXFX
Current cables
Current cables 2 x 5 m 50 mm2 (32.8 ft, 0 AWG) with battery clamps
(for CAT36, CAT66 and CAT126)
C2-05-50VMB3
Current cables 2 x 15 m 70 mm2 (49.2 ft, 00 AWG) with battery clamps
(for CAT36, CAT66 and CAT126)
C2- 15-70VMB3
Current cables 2 x 5 m 25 mm2 (32.8 ft, 3 AWG) with battery clamps
(for CAT35, CAT65 and CAT125)
C2-05-25VMB1
Current cables 2 x 15 m 35 mm2 (49.2 ft, 2 AWG) with battery clamps
(for CAT35, CAT65 and CAT125)
C2- 15-35VMB1
Sense cables
Sense cables 2 x 5 m (32.8 ft) with alligator clamps A2
S2-05-02BPA2
Sense cables 2 x 15 m (49.2 ft) with alligator clamps A2
S2- 15-02BPA2
Transducers
Digital rotary transducer with 5 m (16.4 ft) connection cable
DRT-250-C605
Digital rotary transducer with 10 m (32.8 ft) connection cable
DRT-250-C610
Digital rotary transducer with 5 m (16.4 ft) connection cable with accessories
DRT-SET-0005
Digital rotary transducer with 10 m (32.8 ft) connection cable with accessories
DRT-SET-0010
Linear analog transducer (TLH) 150 mm (5.9 in) with 5 m (16.4 ft) connection cable and
linear transducer rod
LAT- 150-C305
Linear analog transducer (TLH) 225 mm (8.85 in) with 5 m (16.4 ft) connection cable
and linear transducer rod
LAT-225-C305
Linear analog transducer (TLH) 300 mm (11.8 in) with 5 m (16.4 ft) connection cable
and linear transducer rod
LAT-300-C305
Linear analog transducer (TLH) 500 mm (19.68 in) with 5 m (16.4 ft) connection cable
and linear transducer rod
LAT-500-C305
Three phase digital rotary transducer kit (with 5 m connection cable)
TPH-DRTS-005
Online first trip test kit - Three-pole control for CAT Advanced series
ONFTT-KIT-01
Online first trip test kit - Single-pole control for CAT Advanced series
ONFTT-KIT-00
Transducer mounting kits
Universal transducer mounting kit
UTM-KIT-0000
Universal transducer mounting kit - extended version
UTM-KIT-0001
Doble transducer adapter
DTA-BOX-C002
Big clamping base
UTM-LCB-0080
Small clamping base
UTM-SCB-0030
Articulated arm
UTM-AA-0288
Carrier (L profile) for digital rotary transducer
DRT-CRL-0090
Carrier for analog rotary transducer
ART-CRL-0000
Linear transducer rod
LAT-ROD-0000
Bellow coupling (M6)
DRT-COUP-003
Bellow coupling (M10)
DRT-COUP-001
Magnet
UTM-MAG-0800
Four mechanical adapters 10 mm (M6, M8, M10, M12)
DRT-MADP-004
Four mechanical adapters 6 mm (M6, M8, M10, M12)
DRT-MADP-604
| CAT34斷路器分析儀和計時器規格 | |
| 電源供應 |
|
| 根據 IEC/EN60320-1; UL498, CSA 22.2連接 |
|
| 電源 | 90 V - 264 V AC |
| 頻率 | 50/60 Hz |
| I輸入功率 | 3900 VA |
| 保險絲15 A / 250 V，快速反應，但不是用戶可更換 |
|
| 適用標準 |
|
| 安裝/過電壓 | 第二類 |
| 污染 | 2度 |
| 安全 |
LVD 2014 / 35 /歐盟（CE符合） 標準EN 61010-1 |
| EMC |
指令2014 / 30 /歐盟（CE符合標準EN 61326-1:2006） |
| CAN/CSA-C22.2 No. 61010-1 |
|
| 環境條件 |
|
| 操作溫度 | -10 oC - + 55 oC / 14 oF - +131 oF |
| 存儲和運輸 | -40 oC - + 70oC / -40 oF - +158 oF |
| 濕度 | 度5% - 95%相對濕度 |
| 尺寸/重量 |
|
| 尺寸(寬 x 高 x 深): |
480 mm x 197 mm x 395 mm 18.89 in x 7.75 in x 15.55 in |
| 重量 | 12,9 kg / 28.4 lbs |
|
CAT34斷路器分析儀和計時器說明文檔 |
|
|
|
|
