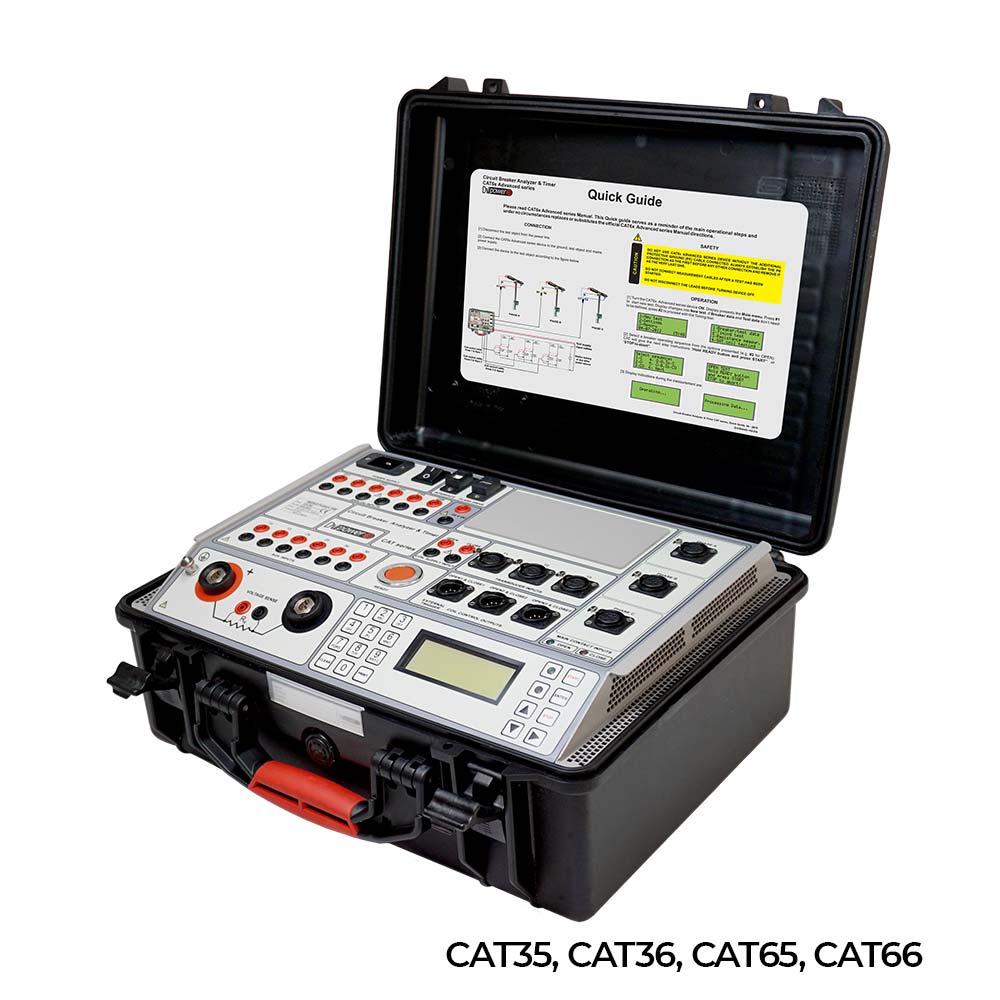

瑞典DV POWER　CAT64A斷路器分析儀和計時器

Included accessories

Windows based DV-Win PC software including USB cable

Mains power cable

Ground (PE) cable

Plastic transport case

型號：CAT64A斷路器分析儀和計時器

品牌：瑞典DV POWER

會員價格：面議

聯系方式： 010-68940148

在線解答：

立即咨詢

瑞典DV POWER

IBEKO POWER AB 公司位于瑞典，專業致力于新一代電力測試設備的研發和制造，所有產品均采用更先進的技術和工藝制造?！癉V- power”是其商標，該系列產品是由前“Programma”公司的一組工程師與ABB 公司共同研發的。我司成立于2000年，由一群電力電子技術領域...[查看更多]

瀏覽過此產品的用戶最終購買了

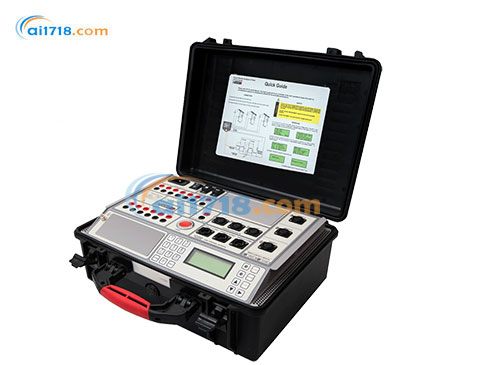

瑞典DVPower CAT64A斷路器分析儀和計時器由愛儀器儀表網代理，CAT64A是可以是單機控制或通過PC控制，來評估斷路器狀態的數字化儀器?，F在熱賣中，如需購買，可通過ai1718.com的客服熱線聯系我們！

CAT64A斷路器分析儀和計時器簡介：
CAT *系列斷路器分析儀和計時器是獨立式或由 PC 控制的數字儀器，用于斷路器狀態評估。該系列能記錄高壓和中壓斷路器運動部件的分閘與合閘線圈電流圖以及位移情況。定時通道可記錄電弧觸頭、電阻觸頭和輔助觸頭的閉合與斷開情況，主觸頭通道還可測量預插入電阻（若斷路器中存在）的電阻值。此外，主觸頭定時通道能測量雙側接地（BSG）的空氣絕緣變電站（AIS）斷路器的主電弧觸頭操作時間。

CAT64A斷路器分析儀和計時器特點：
電源輸入：90 - 264V AC；50Hz - 60Hz。
PC 通信接口：USB 接口，用于與 PC 進行數據傳輸和控制。
閃存驅動器：可將測試結果直接下載到 USB 存儲棒。
主觸頭輸入：用于主觸頭和預插入電阻觸頭的定時測量，以及預插入電阻的電阻測量。
模擬通道輸入：測量相關模擬信號的電壓。
電流鉗電壓輸出：為電流鉗提供 24V 電壓輸出。
線圈電源輸入：分別為分閘和合閘線圈控制提供電壓輸入。
運動傳感器輸入：測量斷路器運動部件的位移。
輔助輸入：用于干濕輔助觸頭的定時測量。
準備按鈕：使儀器準備好開始測試。
線圈控制輸出和外部觸發輸入：用于操作斷路器的分閘和合閘線圈，或實現外部觸發功能。
斷路器狀態指示燈：指示斷路器的合閘或分閘位置。
微型歐姆表：內置微型歐姆表（*大直流電流 500A），用于靜態和動態接觸電阻測量（CAT64A 和 CAT124A 型號無此功能）。
字母數字鍵盤：用于輸入斷路器數據、測試數據和控制功能。
LCD 顯示屏：20 字符 ×4 行，帶背光，在強光下也能清晰可見。

CAT64A斷路器分析儀和計時器原理：
?斷路器狀態評估的重要組成部分，是通過新的測試結果比較之前的測試中得到的結果
?測量值與制造商提供的規格做比較。獲得測試數據可以在后期作為序列測量的參考
?為了提供準確的比較，測試需要使用相同的測試參數來進行
?在測試結果的偏差和變化可能表明該斷路器狀態變差
?此功能可以在DV-WIN實現測試計劃和圖形疊加功能
?斷路器檢修過程的*結果，可通過DV-WIN軟件分析和創建定制報告

CAT64A斷路器分析儀和計時器應用：
?可進行對所有斷路器的應用程序列表：
?高達12個主觸頭同步定時測量（每相4個）
?包括合閘電阻（如果在電路斷路器存在的話）和6輔助觸點
?合閘電阻測量（如果在斷路器存在的話）
?評估斷路器各極間的同步性
?同時對4線圈電流的分析（3打開和1閉合線圈）
?通過圖形顯示的電壓值評價的變電站電池狀態
?位移，觸頭接觸，超程，回彈，阻尼時間和斷路器運動部件的平均速度測量
?*次跳閘測試
?靜態接觸電阻測量（測試電流高達500A）
?動態電阻測量（測試電流高達500A）

?在落地罐式斷路器磁心去磁（CAT66D可配置）

CAT35訂購信息
Instrument					Article No
Circuit Breaker Analyzer & Timer CAT35					CAT3500-N-01
Circuit Breaker Analyzer & Timer CAT36					CAT3600-N-01
Circuit Breaker Analyzer & Timer CAT64A					CAT64A0-N-01
Circuit Breaker Analyzer & Timer CAT65					CAT6500-N-01
Circuit Breaker Analyzer & Timer CAT66					CAT6600-N-01
Circuit Breaker Analyzer & Timer CAT124A					CAT124A-N-01
Circuit Breaker Analyzer & Timer CAT125					CAT1250-N-01
Circuit Breaker Analyzer & Timer CAT126					CAT1260-N-01

Standard accessories					Article No
Main contact cables
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT35, CAT36)					CM-05-34MXST
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT64A, CAT65, CAT66)					CM-05-65MXST
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT124A, CAT125, CAT126)					CM-05- 12MXST
Main contact cables extension
Main contact cables extension 10 m (32.8 ft) (for CAT35, CAT36, CAT64A, CAT65, CAT66)					E3- 10-65MXFX
Main contact cables extension 10 m (32.8 ft) (for CAT124A, CAT125, CAT126)					E6- 10- 12MXFX
Control cabinet cables
Coil control cable set 5 m (16.4 ft) with banana plugs (Single-pole control -6 coil channels)					CO-05-6BC5B1
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs with retractable isolation (red) (x 6)					JCR- 15-2REBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs with retractable isolation (black) (x 6)					JCB- 15-2REBP
Test probe with grip jaws (black) (x 3)					TESTPR-GJ-B0
Test probe with grip jaws (red) (x 3)					TESTPR-GJ-R0
Coil supply cable set 4 x 5 m 2,5 mm2 (16.4 ft, 13 AWG) with banana plugs					CS-05-02BPBP
Auxiliary contacts cable set 12 x 5 m (16.4 ft) with banana plugs					AX-05-02BPBP
Analog channels cable set 12 x 5 m (16.4 ft) with banana plugs					AN-05-02BPBP
Current cables
Current cables 2 x 10 m 50 mm2 (32.8 ft, 0 AWG) with battery clamps (for CAT36, CAT66 and CAT126)					C2- 10-50VMB3
Current cables 2 x 10 m 25 mm2 (32.8 ft, 3 AWG) with battery clamps (for CAT35, CAT65 and CAT125)					C2- 10-25VMB1
Sense cables
Sense cables 2 x 10 m (32.8 ft) with alligator clamps (for CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)					S2- 10-02BPA1
Cable cases
Cable plastic case - large size (x 2)					CABLE-CAS-03

Optional accessories and features				Article No
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Live Tank Circuit Breaker for CAT3x Advanced series (3 channels - one break per phase) (available with CAT35 and CAT36)				BSG-CATII-00
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Live Tank Circuit Breaker for CAT6x and CAT12x Advanced series (6 channels - two breaks per phase) (available with CAT65, CAT66, CAT125 and CAT126)				BSG-CATII-01
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Dead Tank Circuit Breaker for CAT Advanced series (available with CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)				BSG-CATDTB-0
BSG on GIS feature for CAT Advanced series (available with CAT36, CAT66 and CAT126)				BSG-CATGIS-0
Current cables with branch connectors 2 x (3 x 5 m, 16 mm2) with SCT clamps				C6BC-05-16GMST
Extension cables 2 x 5 m 50 mm2				E2-05-50VMVF
AC Current clamp 1 A / 1 V and cable 5 m with banana plugs				CACL-ACBP-05
Built-in high precision measurement module (available with CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)				RMO-HPMM-DG0
Current clamp 30/300 A power supplied from the instrument with adapter 5 m (16.4 ft)				CACL-0300-07
Current clamp 30/300 A with internal battery supply and extension 5 m (16.4 ft)				CACL-0300-08
Thermal printer 112 mm (4.4 inch) (built-in)				PRINT- 112-01
Thermal paper roll				PRINT- 112-RO
Cable plastic case with wheels - large size				CABLE-CAS-W3

Control cabinet cables
Coil control cable set 10 m with banana plugs (Single-pole control -6 coil channels)					CO- 10-6BC5B1
Coil control cable set 15 m with banana plugs (Single-pole control -6 coil channels)					CO- 15-6BC5B1
Coil control cable 5 m with banana plugs (Three-pole control - 2 coil channels)					CO-05-00C5B1
Coil control cable 10 m with banana plugs (Three-pole control - 2 coil channels)					CO- 10-00C5B1
Coil control cable 15 m with banana plugs (Three-pole control - 2 coil channels)					CO- 15-00C5B1
Coil supply cable set 4 x 2 m 2,5 mm2 (6.5 ft, 13 AWG) with banana plugs					CS-02-02BPBP
Coil supply cable set 4 x 5 m 2,5 mm2 (16.4 ft, 13 AWG) with banana plugs					CS-05-02BPBP
Coil supply cable set 4 x 10 m 2,5 mm2 (32.8 ft, 13 AWG) with banana plugs					CS- 10-02BPBP
Coil supply cable set 2 x 2 m 2,5 mm2 with banana plugs					C2-02-02BPBP
Coil supply cable set 2 x 5 m 2,5 mm2 with banana plugs					C2-05-02BPBP
Coil supply cable set 2 x 10 m 2,5 mm2 with banana plugs					C2- 10-02BPBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs (black)					JCB- 15-2BPBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs (red)					JCR- 15-2BPBP
Auxiliary contacts cable set 12 x 5 m with banana plugs					AX-05-02BPBP
Auxiliary contacts cable set 12 x 10 m with banana plugs					AX- 10-02BPBP
Auxiliary contacts cable set 12 x 15 m with banana plugs					AX- 15-02BPBP
Analog channels cable set 12 x 5 m with banana plugs					AN-05-02BPBP
Analog channels cable set 12 x 10 m with banana plugs					AN- 10-02BPBP
Analog channels cable set 12 x 15 m with banana plugs					AN- 15-02BPBP
Main contact cables
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT35, CAT36)					CM-03-34MXST
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT64A, CAT65, CAT66)					CM-03-65MXST
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT124A, CAT125, CAT126)					CM-03- 12MXST
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT35, CAT36)					CM-03-34MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT35, CAT36)					CM-05-34MXA2
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT64A, CAT65, CAT66)					CM-03-65MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT64A, CAT65, CAT66)					CM-05-65MXA2
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT124A, CAT125, CAT126)					CM-03- 12MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT124A, CAT125, CAT126)					CM-05- 12MXA2
Main contact cables extension
Main contact cables Extension 5 m (16.4 ft) (for CAT35, CAT36, CAT64A, CAT65, CAT66)					E3-05-65MXFX
Main contact cables Extension 5 m (16.4 ft) (for CAT124A, CAT125, CAT126)					E6-05- 12MXFX
Main contact cables Extension 15 m (49.2 ft) (for CAT35, CAT64A, CAT65, CAT66)					E3- 15-65MXFX
Main contact cables Extension 15 m (49.2 ft) (for CAT124A, CAT125, CAT126)					E6- 15- 12MXFX
Current cables
Current cables 2 x 5 m 50 mm2 (32.8 ft, 0 AWG) with battery clamps (for CAT36, CAT66 and CAT126)					C2-05-50VMB3
Current cables 2 x 15 m 70 mm2 (49.2 ft, 00 AWG) with battery clamps (for CAT36, CAT66 and CAT126)					C2- 15-70VMB3
Current cables 2 x 5 m 25 mm2 (32.8 ft, 3 AWG) with battery clamps (for CAT35, CAT65 and CAT125)					C2-05-25VMB1
Current cables 2 x 15 m 35 mm2 (49.2 ft, 2 AWG) with battery clamps (for CAT35, CAT65 and CAT125)					C2- 15-35VMB1
Sense cables
Sense cables 2 x 5 m (32.8 ft) with alligator clamps A2					S2-05-02BPA2
Sense cables 2 x 15 m (49.2 ft) with alligator clamps A2					S2- 15-02BPA2

Transducers
Digital rotary transducer with 5 m (16.4 ft) connection cable					DRT-250-C605
Digital rotary transducer with 10 m (32.8 ft) connection cable					DRT-250-C610
Digital rotary transducer with 5 m (16.4 ft) connection cable with accessories					DRT-SET-0005
Digital rotary transducer with 10 m (32.8 ft) connection cable with accessories					DRT-SET-0010
Linear analog transducer (TLH) 150 mm (5.9 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT- 150-C305
Linear analog transducer (TLH) 225 mm (8.85 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT-225-C305
Linear analog transducer (TLH) 300 mm (11.8 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT-300-C305
Linear analog transducer (TLH) 500 mm (19.68 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT-500-C305
Three phase digital rotary transducer kit (with 5 m connection cable)					TPH-DRTS-005
Online first trip test kit - Three-pole control for CAT Advanced series					ONFTT-KIT-01
Online first trip test kit - Single-pole control for CAT Advanced series					ONFTT-KIT-00
Transducer mounting kits
Universal transducer mounting kit					UTM-KIT-0000
Universal transducer mounting kit - extended version					UTM-KIT-0001
Doble transducer adapter					DTA-BOX-C002
Big clamping base					UTM-LCB-0080
Small clamping base					UTM-SCB-0030
Articulated arm					UTM-AA-0288
Carrier (L profile) for digital rotary transducer					DRT-CRL-0090
Carrier for analog rotary transducer					ART-CRL-0000
Linear transducer rod					LAT-ROD-0000
Bellow coupling (M6)					DRT-COUP-003
Bellow coupling (M10)					DRT-COUP-001
Magnet					UTM-MAG-0800
Four mechanical adapters 10 mm (M6, M8, M10, M12)					DRT-MADP-004
Four mechanical adapters 6 mm (M6, M8, M10, M12)					DRT-MADP-604

CAT64A斷路器分析儀和計時器規格
電源供應
根據 IEC/EN60320-1; UL498, CSA 22.2連接
電源	90 V - 264 V AC
頻率	50/60 Hz
I輸入功率	3900 VA
保險絲15 A / 250 V，快速反應，但不是用戶可更換
適用標準
安裝/過電壓	第二類
污染	2度
安全	LVD 2014 / 35 /歐盟（CE符合）標準EN 61010-1
EMC	指令2014 / 30 /歐盟（CE符合標準EN 61326-1:2006）
CAN/CSA-C22.2 No. 61010-1
環境條件
操作溫度	-10 oC - + 55 oC / 14 oF - +131 oF
存儲和運輸	-40 oC - + 70oC / -40 oF - +158 oF
濕度	度5% - 95%相對濕度
尺寸/重量
尺寸(寬 x 高 x 深):	480 mm x 197 mm x 395 mm 18.89 in x 7.75 in x 15.55 in
重量	12,9 kg / 28.4 lbs
